MCA-900 II - Digital Thermometer

Product Code: BNK MCA-900II

Brand Name: Bonkote

Download Brochure

Description

Digital Thermometer with various user-replaceable sensors.

Specification

Resolution	0.1°C (0 - 199.9°C) / 1°C (All range of the measurement)
Range of Measurement	0 - 1000°C
Detection Edge	Type K
Measurement Accuracy	± (0.3%rdg + 2°C) (23°C ± 5°C only with the body)
Display	3.5 digits LCD Display
Power supply	DC9V (dry battery 006P 1 piece) (Alkaline battery in continuousness use condition.)
Battery Life	250 hours (when the alkaline is continuously used)
System Requirement	0 - 40°C, 80%RH max
Size	80W x 48D x 156Hmm (without sensor)
Weight	305g (including the battery)

Initial and regular calibration is not included with the unit. Please advise us if you require initial calibration prior to your order.
All the sensors are optional.

How to use the iron tip temperature sensor unit?

Please wipe the iron tip lightly with cleaner, and touch sensing part softly, putting a small amount of solder on the iron tip.

Accessories

Iron Tip Temperature Sensor Unit SAT-1	Replacement Pin for Sensor Unit SC-006

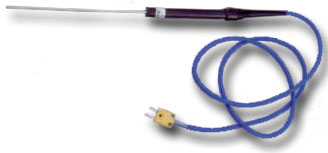

Sensor for Surface SC-008	Sensor for Dipping SC-007

Features

The heat loss of the sensor being small, it can measure accurately even the smallest soldering iron tip.
Because it is a handheld type, it can be used for all kinds of work.
There are three kinds of thermal sensors for various purposes.
